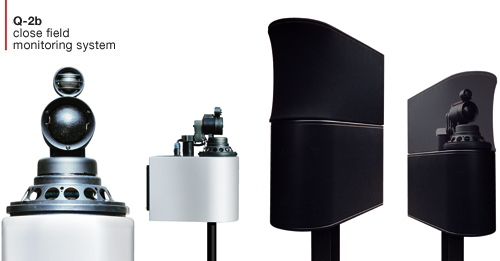

STOLL Q-2B: SHORT DESCRIPTION
• Studio monitoring system for the most demanding users.
• Preferably for the nearfield in positions away from the wall.
• Special construction for the reduction of disturbing enclosure influences regarding diffraction and resonance.
• Through filtering of low order the system shows a minimal group delay with corresponding impulse response.
• Very modern complement with neodymium-magnets in all transducers allows for compact arrangement for a maximum of homogenity and a minimum of interference.
• Magnetically shielded.
• Three way system with two 160 mm subwoofers in push-pull arrangement and 54 mm, respectivly 28 mm soft-domes for mid and high frequencies.
• Ultra stiff subwoofer enclosure, elastically decoupled mid/treble unit.
• Passive filtering technique with high quality components for a reliable operation low on distortion.
STOLL Q-2B:
TECHNICAL SPECIFICATIONS
Frequency response:
35Hz -6dB, 100Hz20kHz +/- 1,5 dB
Dispersion:
spheroidal up to approx. 1000Hz,
towards higher frequencies evenly increasing directivity.
Sensitivity:
ca. 85dB / 2.83 V / 1m
Power rating:
recommended amplifier output 100W to 400W
Nominal Impedance:
4 Ω
Output:
100dB longterm, 112dB peak / 1m
Dimensions:
H/W/D 49/18.5/37 cm, 14.5 kg
Alterations of specifications without prior notice 2006.
STOLL Q-2B: ARCHITECT SPECIFICATIONS
Frequency response: 35Hz -6dB, 100Hz20kHz +/- 1,5 dB. Dispersion: spheroidal up to approx. 1000Hz, towards higher frequencies evenly increasing directivity. Sensitivity: ca. 85dB / 2.83 V / 1m. Power rating: recommended amplifier output 100W to 400W. Nominal Impedance: 4 Ω. Output: 100dB longterm, 112dB peak / 1m. Dimensions: H/W/D 49/18.5/37 cm, 14.5 kg. Alterations of specifications without prior notice 2006.
Download Stoll Q-2b as Pdf.
|
|
|
