STOLL SL3000: SHORT DESCRIPTION
Extremely compact and versatile high power bass system, suitable individually as subs for smaller systems or in multiples of large arrays.
Very high output thanks to a extraordinarily powerful long excursion 18” driver in a optimized bass reflex enclosure.
High quality components (die-cast frame, 100mm inside/outside wound voice coils, Multiple airflow cooling) in a heavily braced, resonance minimized birchply enclosure guarantee sound quality above rental standard.
Finish: Durable 2-component black coating, 2 four-pole speakon metal sockets, steel grill front covered with black foam, one handle on two sides of the cabinet, M20 tube receptacle on top.
Dolly or backside mounted castors on option
STOLL SL3000: GENERAL DESCRIPTION

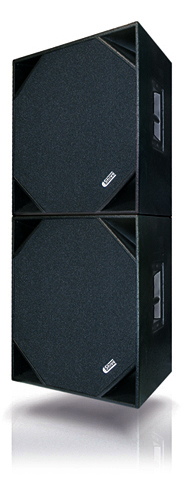

The Stoll SL 3000 Sublows consists of 2 compact subwoofers, equipped with a powerful long excursion 18” driver in a ported enclosure. It replaces two of the proven Stoll B118MkII Subs and is fully compatible with these.

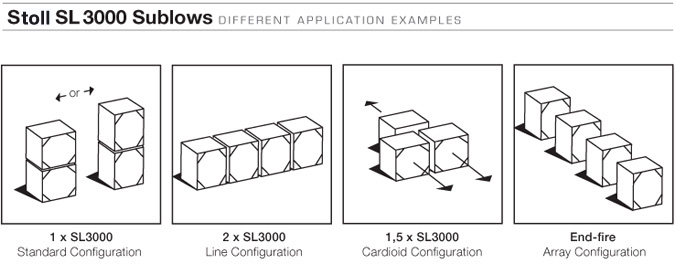

The partition of a typical 2x18” Subwoofer into two halves makes sense for being able to be used in a variety of different configurations. Using advanced DSP-control, you are able to create conventional stacks as well as modern applications like cardioid, hypercardioid and endfire arrays. Due to the very compact size of the units, these directive configurations can be realized without any shading problems. Also, the small size and extreme stiffness of the box allow a resonance free operation (internal air and body) in the specified frequency band, with the exception of the desired helmholtz-resonance at lower cut-off, of course.
The Stoll SL 3000 Sublows should be driven with DSP speaker controllers programmed with the specific setups we provide you with or with the Stoll SC 1800 analogue controller.
(for one SL3000 system = 2 enclosures
in parallel stack on floor)
Frequency magnitude response:
38Hz to 160Hz +3dB-6dB 2π
100dB / 2.00V / at 1m 2π
1400W RMS, 2800W continuous programme
2 x 8 Ω
124dB SPL longterm, 136dB peak / 1m
H/W/D: 582/492/481 mm, 33.7 kg
Alterations of specifications
without prior notice 2006.
STOLL SL3000: ARCHITECT SPECIFICATIONS
(for one SL3000 system = 2 enclosures in parallel stack on floor) Frequency magnitude response: 38Hz to 160Hz +3dB-6dB 2π. Sensitivity: 100dB / 2.00V / at 1m 2π. Power rating: 1400W RMS, 2800W continuous programme. Nominal Impedance: 2 x 8 Ω. Acoustic Output: 124dB SPL longterm, 136dB peak / 1m. Dimensions: H/W/D: 582/492/481 mm, 33.7 kg. Alterations of specifications without prior notice.
